Rangemaster 119520 90cm Flat Hood Cooker Hood in Slate – UNBHDS90SL/

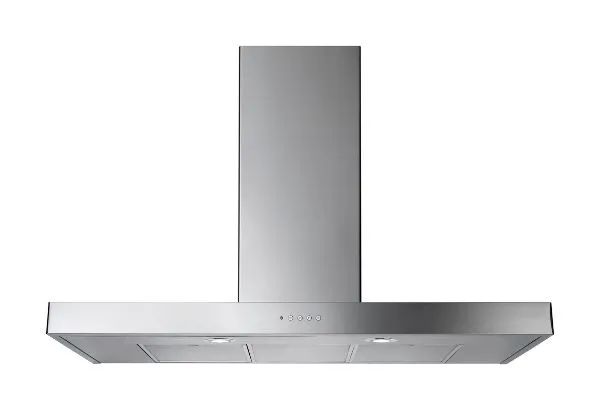

Falcon Flat 90cm Wall-Mounted Cooker Hood – Contemporary Style with Powerful Performance

With its sleek, minimalist design, the Falcon Flat Hood is the perfect final touch to a modern kitchen. This 90cm wall-mounted cooker hoodcombines contemporary aesthetics with powerful extraction, helping to keep your cooking environment fresh and grease-free.

Featuring front-mounted touch controls, it offers intuitive fan speed selection and convenient operation of the integrated LED lighting. Whether you prefer ducted or recirculating installation, this versatile hood fits seamlessly into a range of kitchen layouts. Available in three sizes and six stylish colours to match your space.

Key Features:

• Extraction Rate:Up to 620 m³/h for efficient odour and grease removal
• Extraction Type:Suitable for both ducted and recirculating setups
• Touch Controls:Front-mounted for quick and easy adjustments
• LED Lighting:Bright, energy-efficient illumination over your hob
• Sleek Design:Flat, modern appearance to complement contemporary kitchens

Product Code:119520

Product Dimensions (HxWxD):745–955 x 898 x 470 mm

Warranty:2 years parts and labour

Enhance your kitchen with the Falcon Flat Hood – a stylish and effective solution for modern homes.

Product Overview

• Brand:Rangemaster

• Model:UNBHDS90SL/

• Type:90cm Flat Chimney Hood

• Colour:Slate

• Installation Type:Wall-mounted

• Extraction Mode:Ducted or Recirculating

• Lighting Type:Integrated LED

• Lighting Effectiveness:240 lux

Performance & Airflow

• Flow Rate at Best Efficiency Point (BEP):411 m³/h

• Static Pressure at BEP:389 Pa

• Electric Power Input at BEP:187 W

• Grease Filtering Efficiency (GFE):75.1%

• Off Mode Power Consumption:0.40 W

Extracted Air Flow (m³/h)

• Setting 1 (Working Point):300

• Setting 1 (Free Blowing):310

• Setting 2 (Working Point):460

• Setting 2 (Free Blowing):480

• Setting 3 (Working Point):620

• Setting 3 (Free Blowing):640

• Boost (Working Point):700

• Boost (Free Blowing):730

Noise Levels (dB(A))

• Setting 1:52

• Setting 2:62

• Setting 3:69

• Boost:71

Energy Efficiency (Fiche 65/2014)

• Annual Energy Consumption:76.7 kWh/year

• Energy Efficiency Class:B

• Fluid Dynamic Efficiency:23.70 (Class B)

• Lighting Efficiency:109.0 (Class A)

• Grease Filtering Efficiency:75.1% (Class C)

Airflow Classification (m³/h)

• Normal Use (Min/Max):300 / 620

• Boost Mode:700

Acoustic Power Emissions (dB(A))

• Normal Use (Min/Max):52 / 69

• Boost Mode:71

Height – 955 mm

Width – 898 mm

Depth – 470 mm
